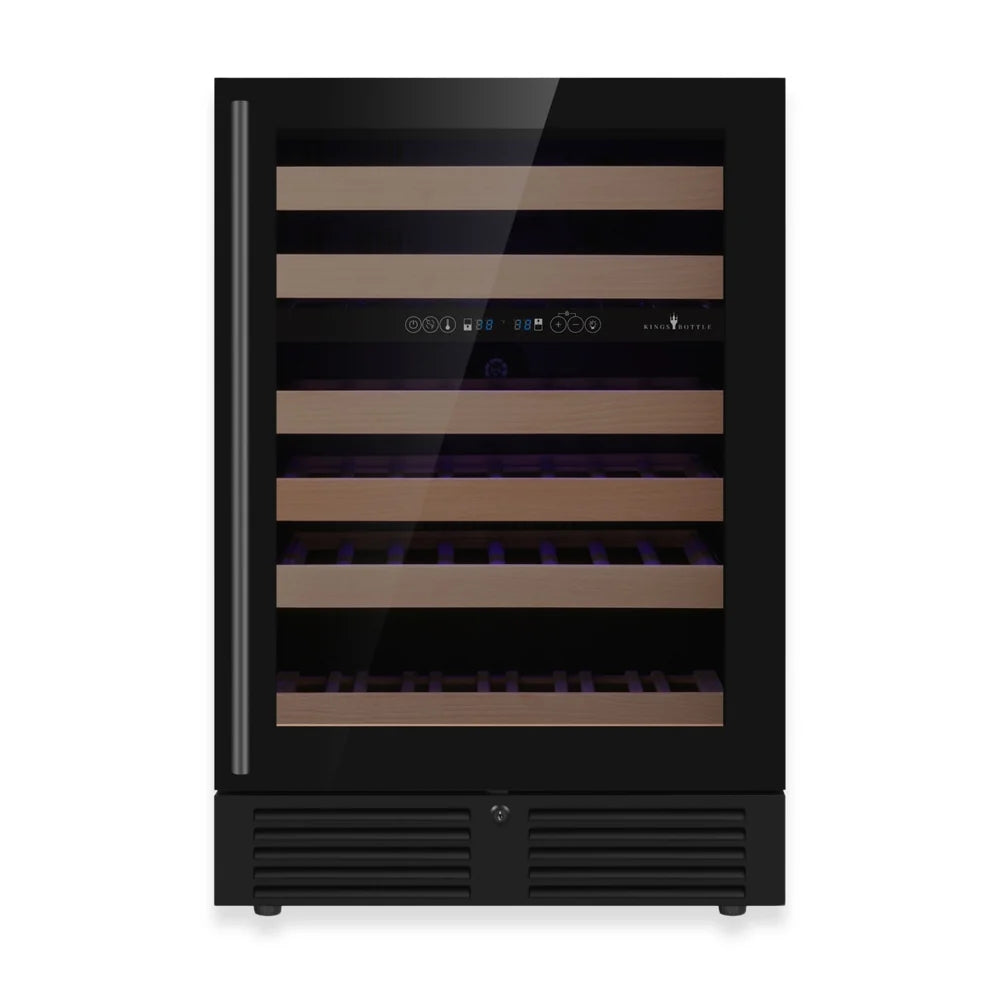

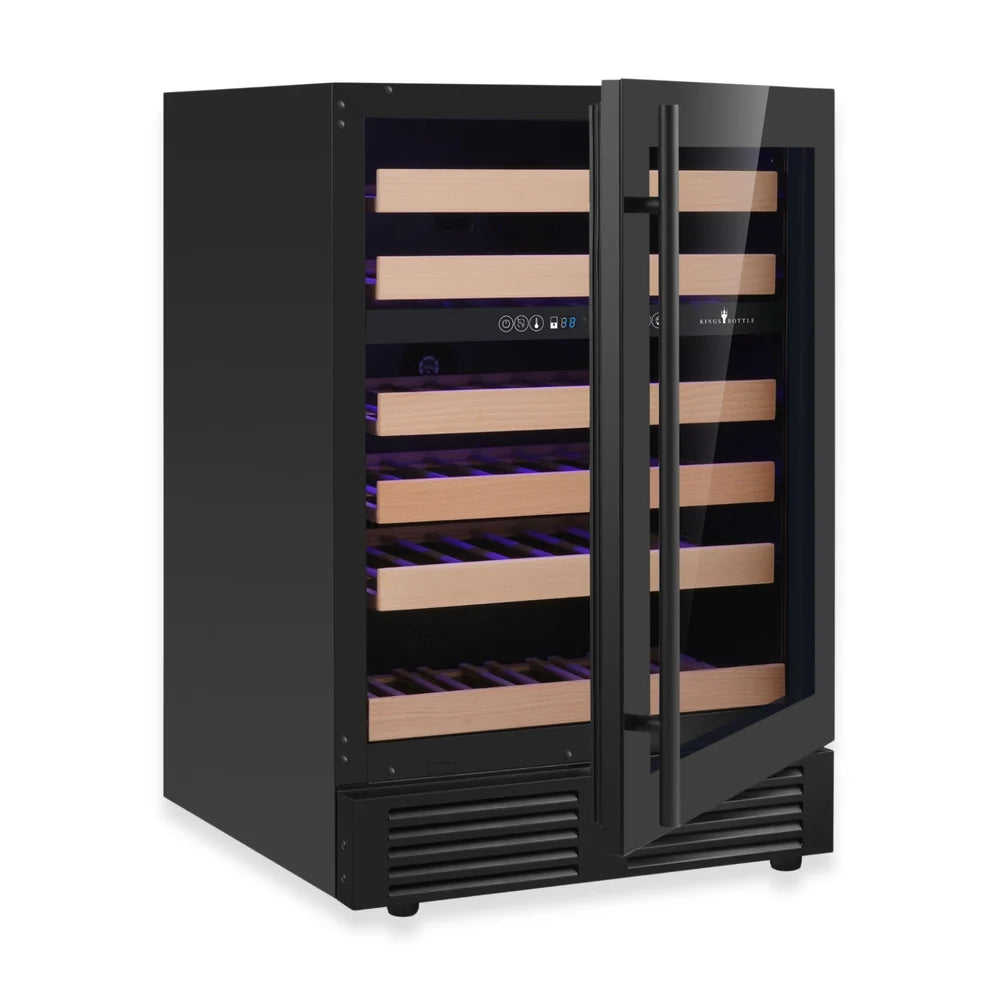

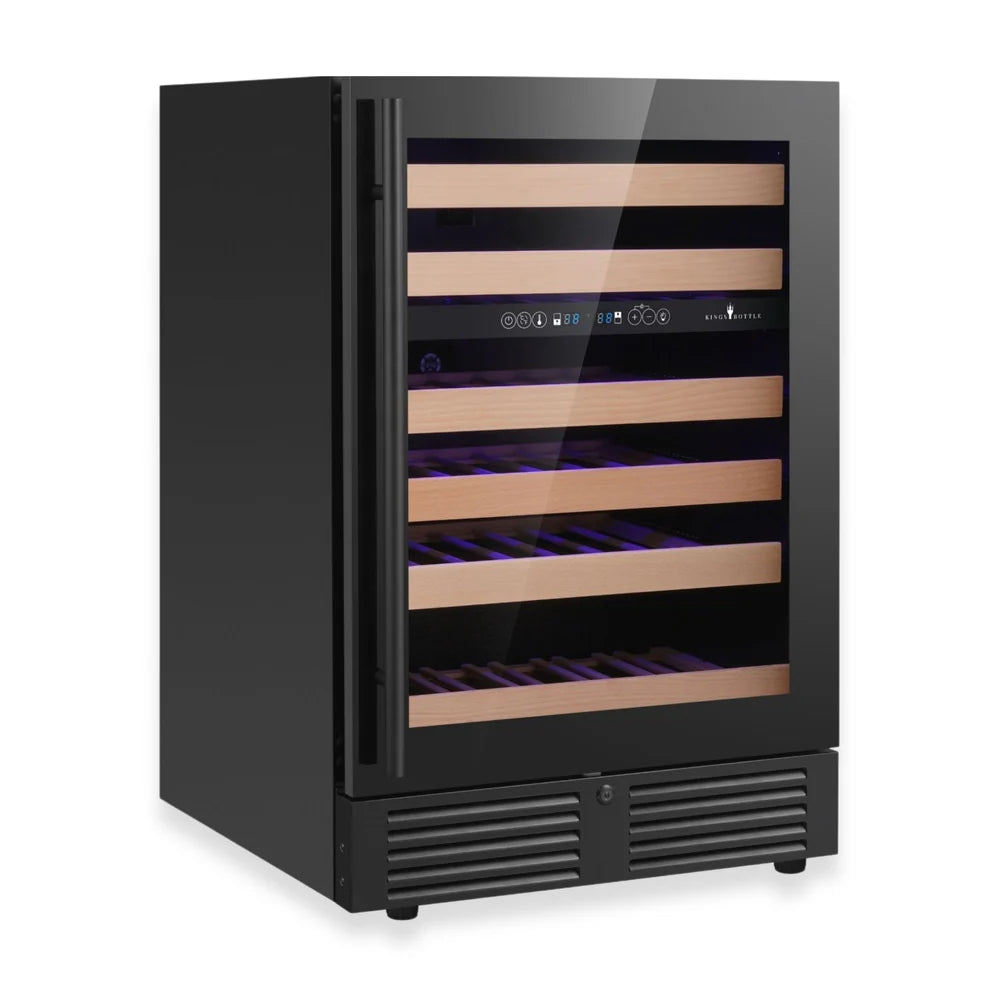

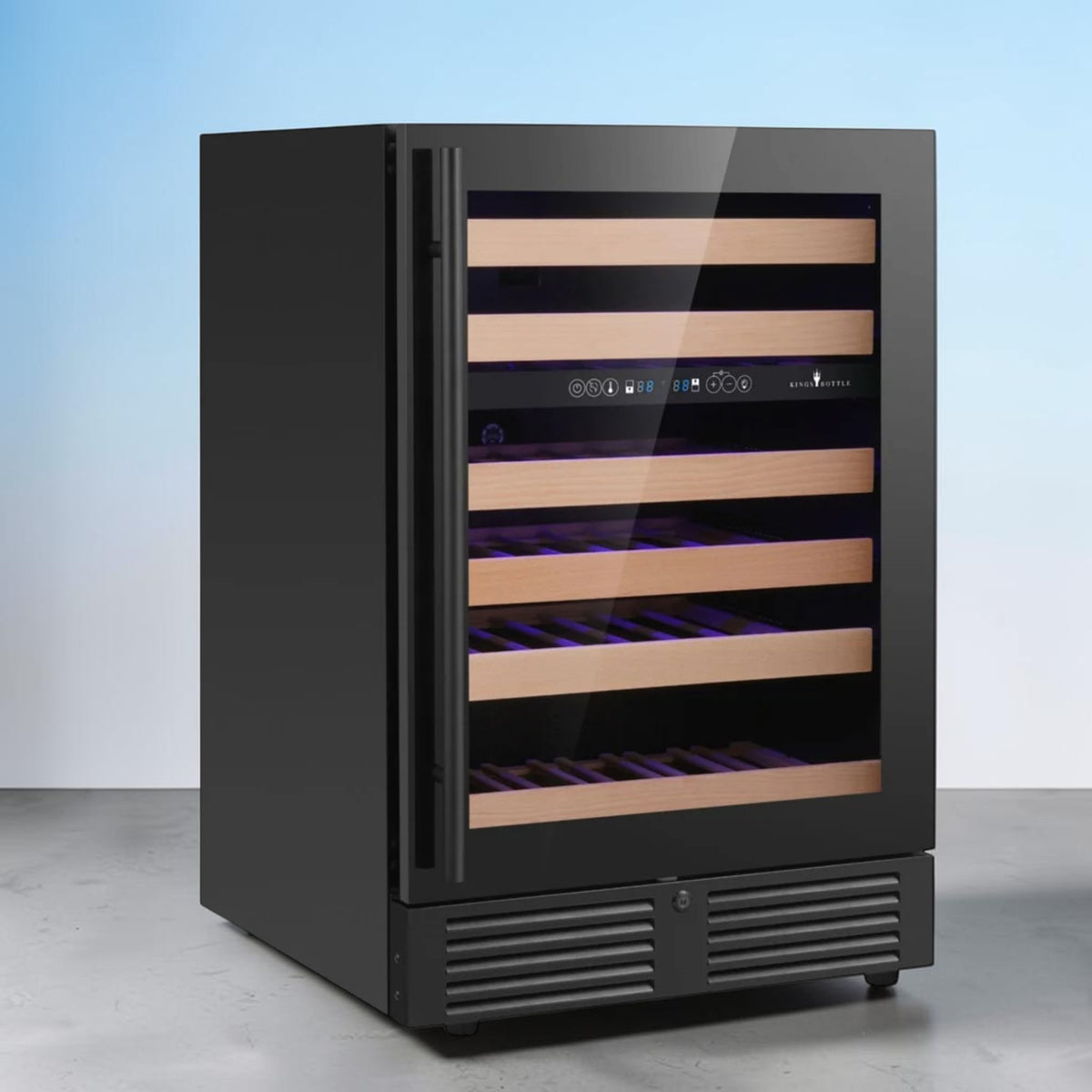

KingsBottle 46-Bottle Dual-Zone Undercounter Wine Fridge

KingsBottle 46-Bottle Dual-Zone Undercounter Wine Fridge

$2,199.00 USD
$2,399.00 USD $2,199.00 USD
Sale Sold Out
Free Shipping ($500+ Value!)

The KingsBottle KBU145DX-FG 24-Inch Built-In Dual-Zone Wine Cooler is a high-performance under-counter preservation cabinet designed for modern kitchens, wet bars, and entertainment spaces. Holding up to 46 standard bottles across 5.12 cu. ft. of usable volume, this compact unit features two independently controlled temperature zones powered by an eco-friendly Embraco inverter compressor with forced-air convection cooling. Outfitted with a borderless black Low-E glass door and right-hand hinging, it provides reliable thermal stability, resists condensation, and safeguards delicate red and white wine collections.

▸ Read Full Specs & Technical Innovation

Unmatched Technical Innovation

  • Independent Dual-Zone Cooling: Upper zone (35°F–54°F) and lower zone (54°F–68°F) allow simultaneous chilling of whites/sparkling and ideal cellar aging for reds.
  • Embraco Inverter Engine & Forced-Air Convection: Advanced variable-speed compressor and fan-forced circulation eliminate hot spots with efficient 180 kWh/year energy consumption.
  • Low-E Glass Protection: Double-pane Low-E glass door blocks damaging light exposure while preventing exterior condensation in humid ambient environments.
  • Full-Extension Smooth-Glide Shelving: Full-extension glide-out shelves allow effortless access to every bottle, including those placed at the back.
  • Large Bottle Architecture: Spaced specifically to hold wider Pinot Noir and Champagne bottles up to 3.39 inches (86mm) in diameter without label scraping.

The Refined Traditions Advantage

As an authorized KingsBottle Dealer, we ensure your investment is backed by official factory support and white-glove service allocation:

  • Authorized Direct Retailer: Authentic KingsBottle product backed directly by official manufacturer warranties.
  • Comprehensive Transit Insurance: Fully protected against freight damage or handling issues during shipping transit.
  • Official Manufacturer Warranty: Direct access to factory parts and authorized technician repair coverage.
  • Dedicated Technical Support: Priority support from our team of wine cellar and appliance specialists.

Free Freight Delivery: Includes free 7-12 day LTL freight shipping with liftgate service
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Have Questions? 📞Call or Text Us 24/7

Have questions about lead times, stock, or product specs?

We strive to respond to every message same-day! If you reach us after hours, leave a message or send a text and our team will get right back to you.

Overview & Features

Engineered for modern kitchen cabinetry and residential bars, the KingsBottle KBU145DX-FG offers versatile dual-zone preservation in a compact 24-inch under-counter footprint. Featuring two independently regulated temperature zones, the upper section (35°F to 54°F) chills whites, roses, and sparkling wines for serving, while the lower section (54°F to 68°F) holds full-bodied reds at ideal aging conditions.

Embraco Inverter Cooling & Forced Air

At the center of the KBU145DX-FG is an energy-efficient Embraco inverter compressor paired with forced-air convection cooling. This system maintains consistent airflow and precise micro-climates across all 5.12 cu. ft. of space, operating quietly at 42.0 dB while consuming just 180 kWh annually.

Borderless Low-E Glass & Large Bottle Accommodation

The front facade features a borderless black Low-E glass door that insulates against ambient heat spikes and prevents surface condensation. Inside, smooth full-extension shelves roll out completely for easy access to your collection, with shelf spacing designed to accommodate wider bottle profiles up to 3.39 inches (86mm) in diameter without interference.

Specifications & Dimensions

Model SKU: KBU145DX-FG RHH

Brand: KingsBottle

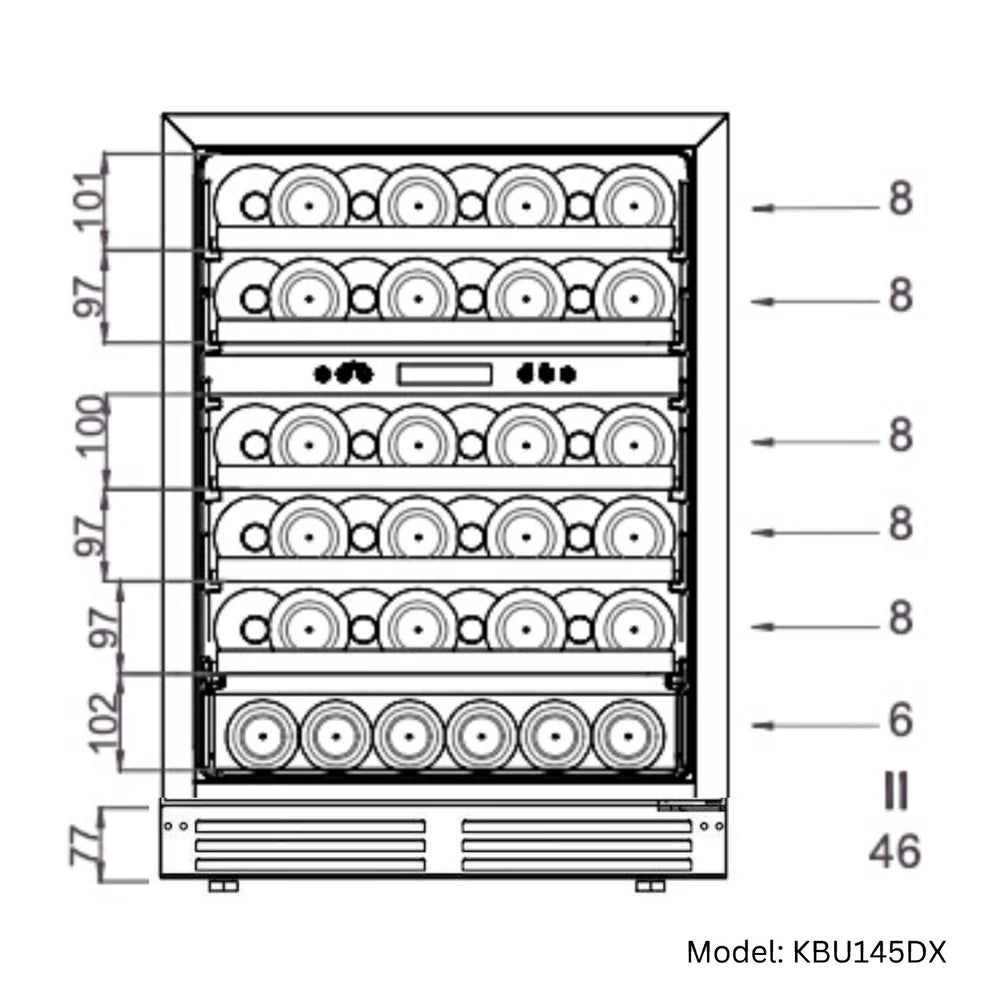

Total Bottle Capacity: 46 Bottles

Useful Volume: 5.12 cu. ft. (145 Liters)

Zone Type: Dual Zone Independent Temperature Control

Temperature Range (Upper Zone): 35°F – 54°F (2°C – 12°C)

Temperature Range (Lower Zone): 54°F – 68°F (12°C – 20°C)

Compressor: Eco-Friendly Embraco Inverter Compressor

Cooling System: Compressor Cooling + Forced-Air Convection

Installation Type: Built-In Under-Counter or Freestanding

Door Style: Borderless Black Low-E Glass Door

Door Hinge: Right Hand Hinge

Shelving Layout: Full-Extension Smooth-Glide Shelves

Max Bottle Diameter: Accommodates bottles up to 3.39″ (86mm)

Noise Level: 42.0 dBA

Energy Consumption: 180 kWh/Year

Certifications: ETL / DOE Certified

Defrost Type: Automatic Defrost

Ambient Operating Range: 32°F – 100°F (0°C – 38°C)

Electrical Requirements: 110-115V / 60Hz

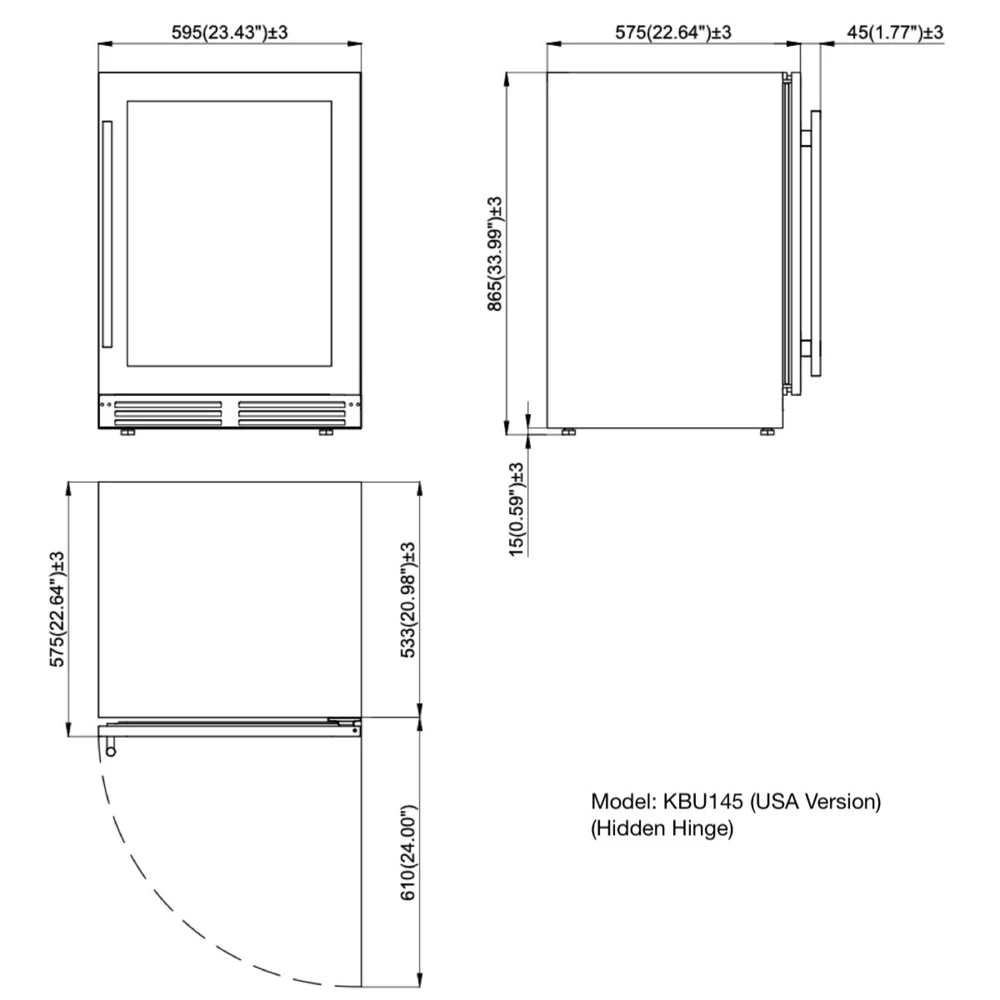

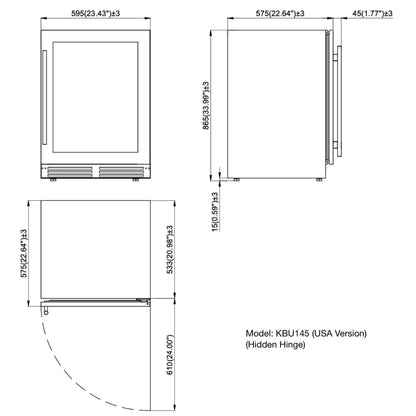

Dimensions (W x D x H): 23.43″ W x 22.76″ D x 34.06″ H

Net Weight: 52.0 lbs

Shipping Method: Free 7-12 day LTL freight shipping with liftgate service
